Magnetic Hoist Hammer

Mk400

Questo strumento rende particolarmente agevole il sollevamento di chiusini grazie ad un magnete / The magnet allows an easy lift of the manhole cover.
Questo strumento rende particolarmente agevole il sollevamento di chiusini grazie ad un magnete / The magnet allows an easy lift of the manhole cover.
Pereja Mini V Pickup kit
Magnetic Hoist Hammer
Mk400

MK400 is an universal magentic hoist for opening all kinds of cast iron covers and grates. With weight less than 5 kg and a magnet with a 420 kg nominal lifting force it is a handy but super powerful must have gadget for any infrastructure worker. A large magnet with 240 cm2 surface delivers exceptional magnetic power even on covers with very structured or dirty surface. This means that in most cases the tool is limited not by the strength of the magnet but only by the user's own strength or by the safety at work regulations respectively. With MK400 the cast iron covers can be lifted, tilted or dragged.

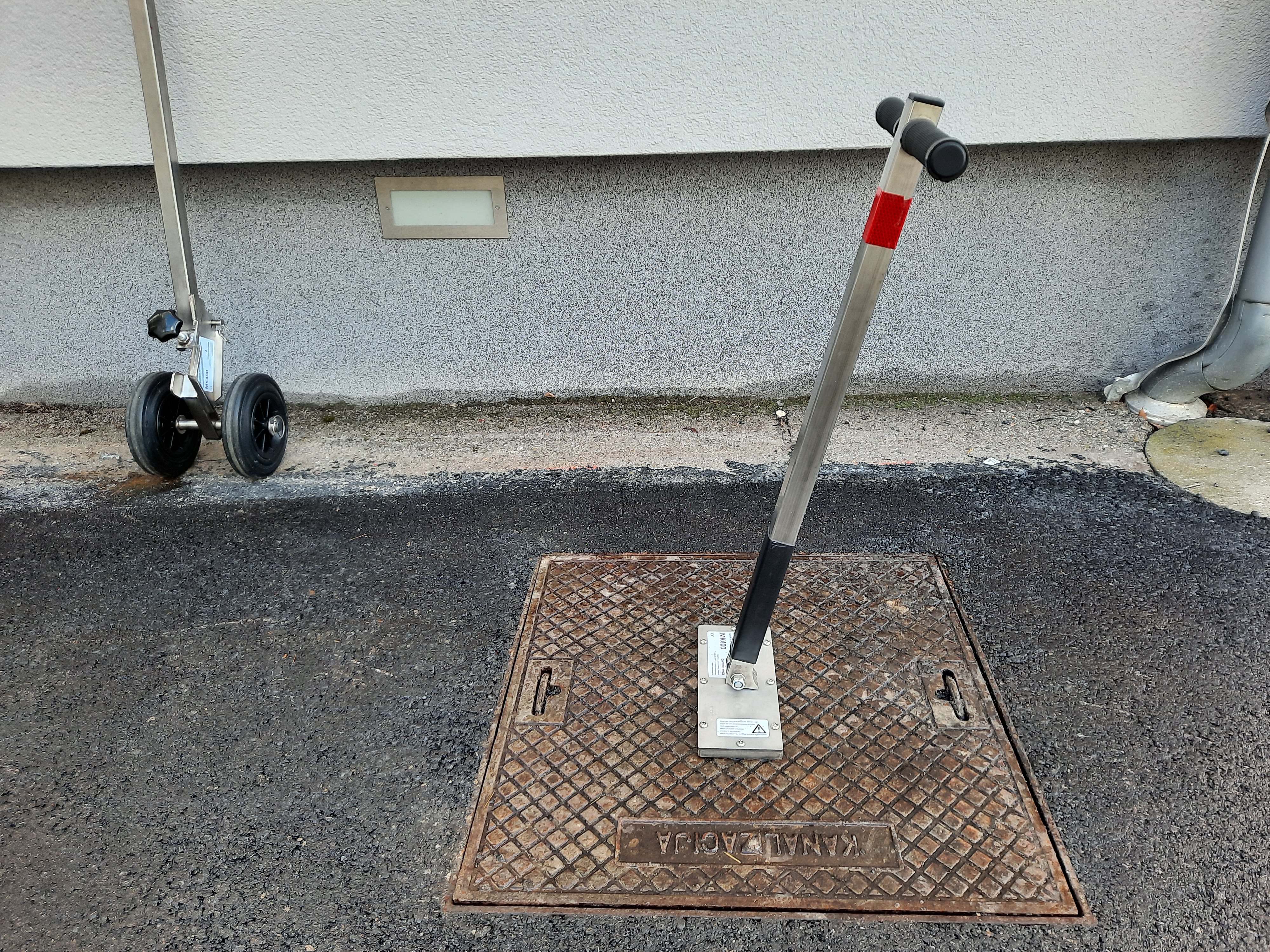

The self-standing mode reduces the need to bend down for pi cking up the tool and helps to ea sily detach the magnet from the cover. All metal parts are made of stainless steel to en sure long lifespan and easy maintenance.

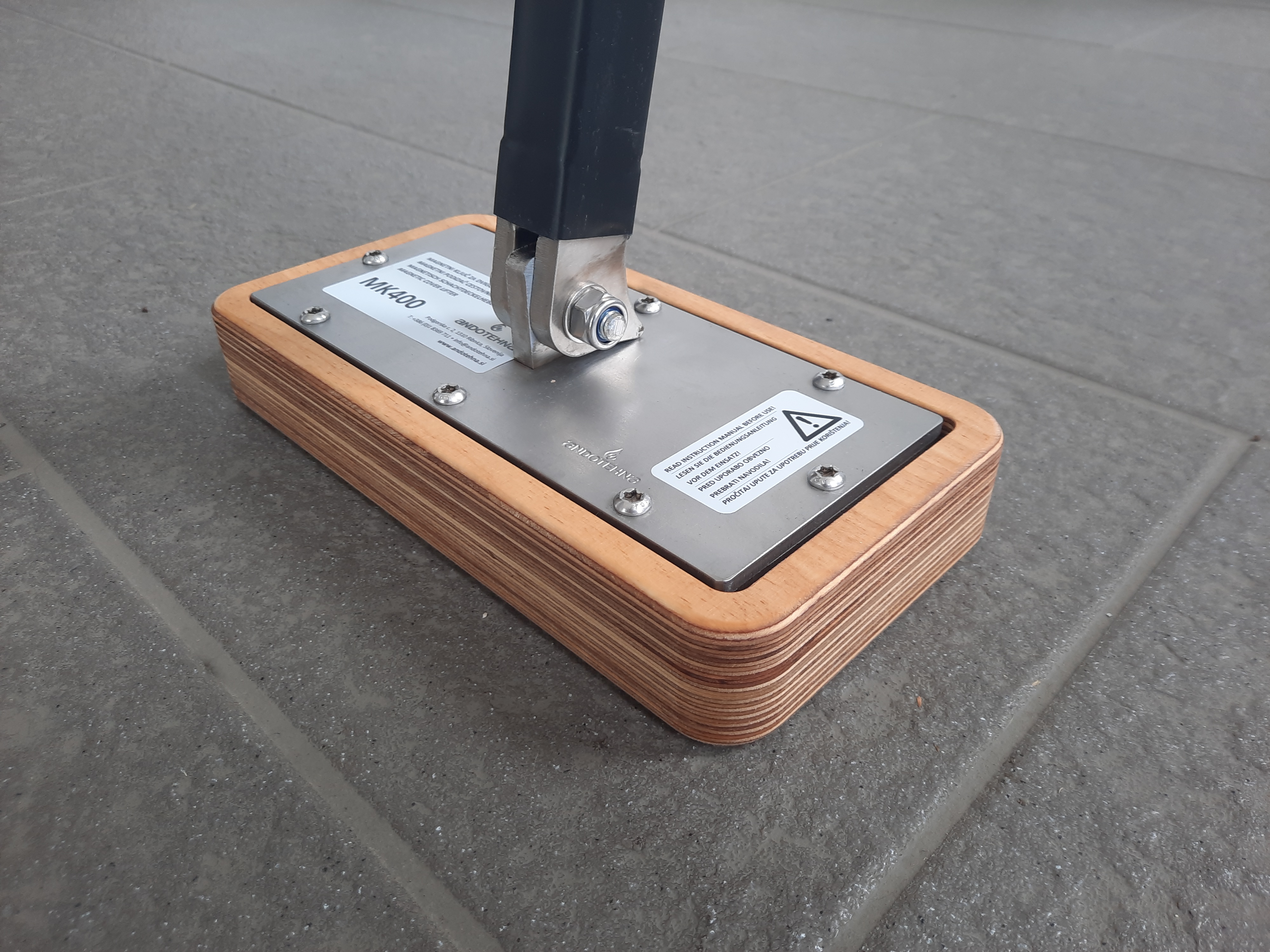

The MK400 comes with a wooden protection cap to avoid unwanted magnet contacts while not in use.

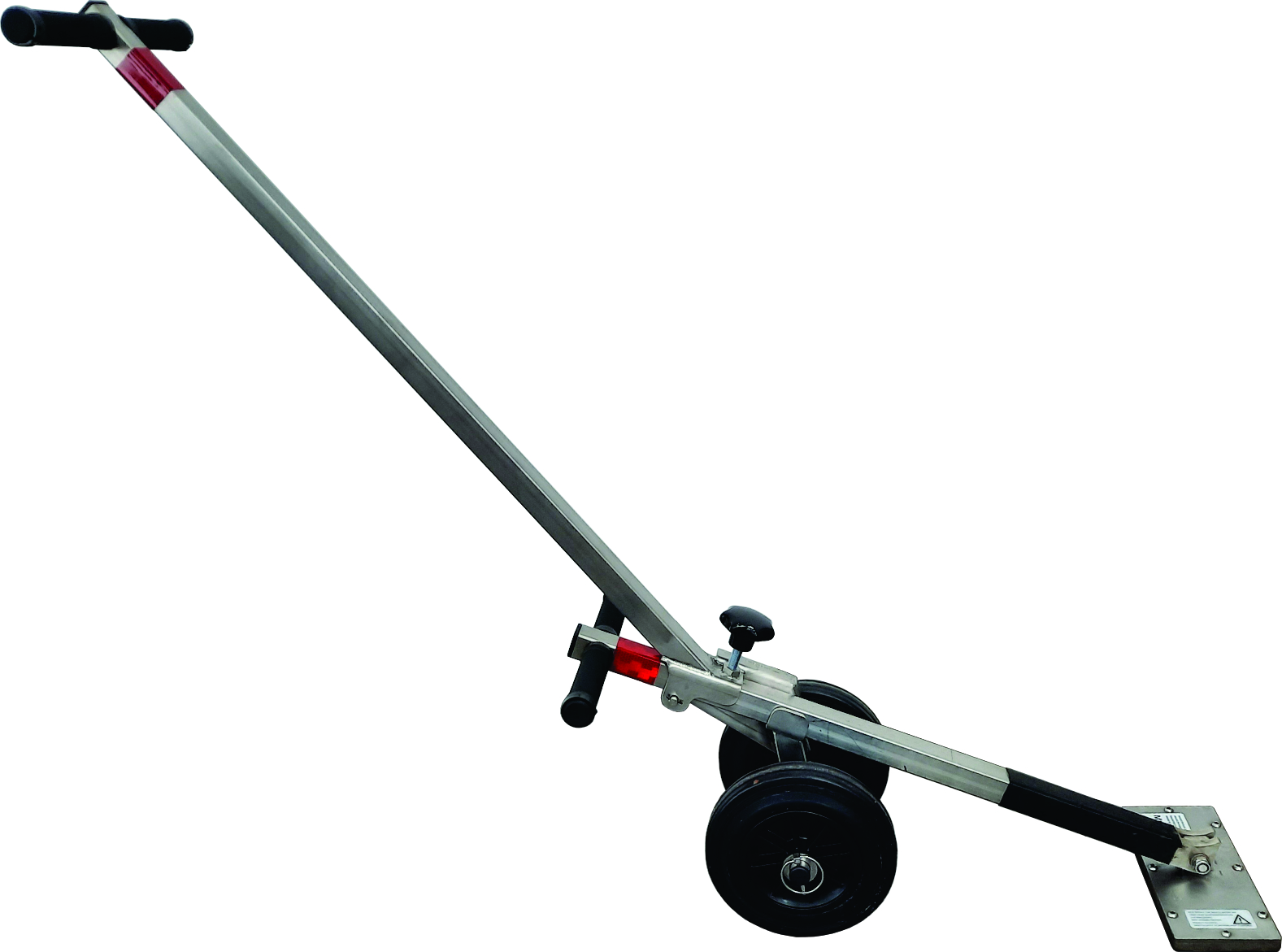

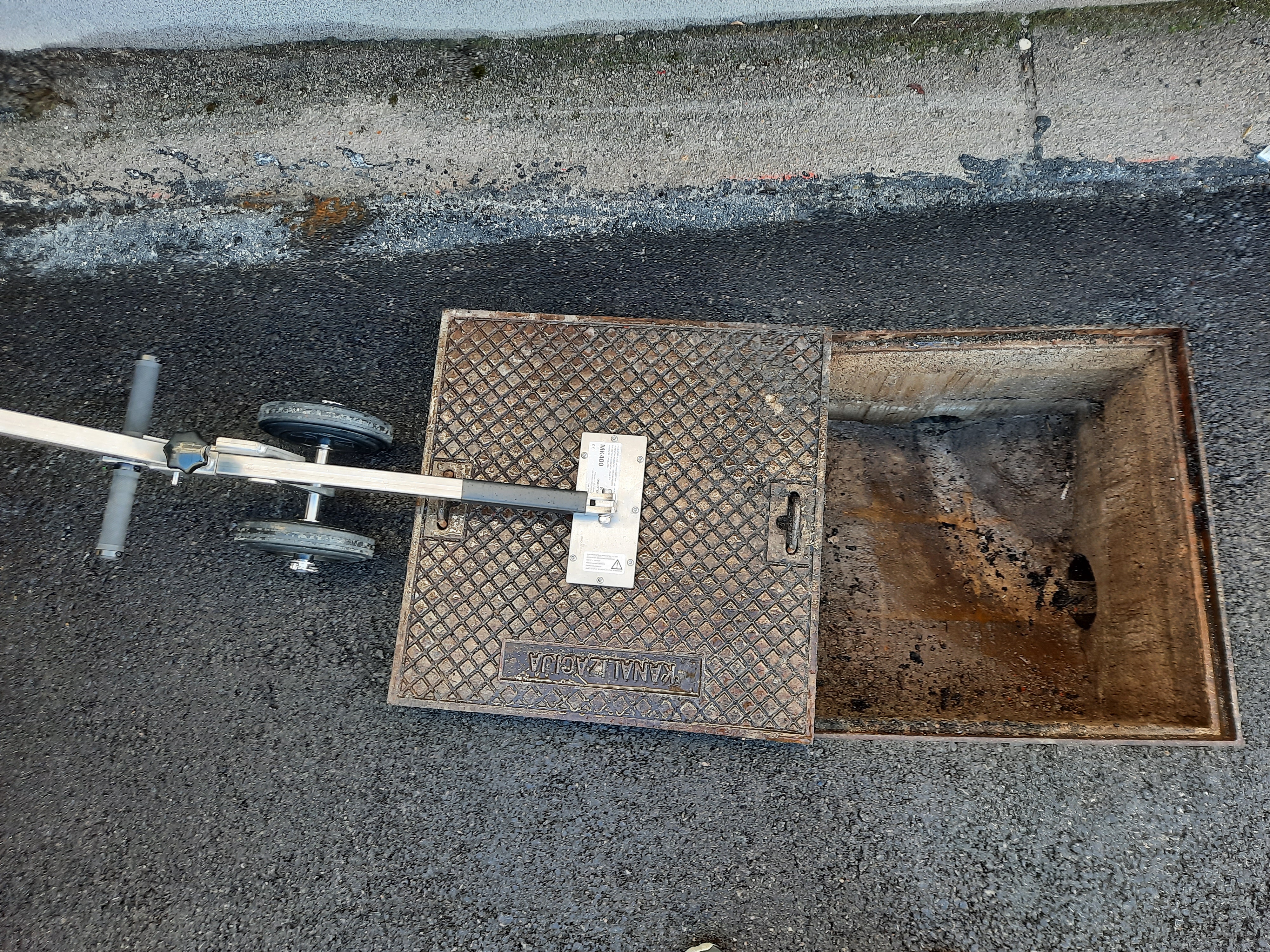

The WA-MK400 is a wheeled adapter designed for use with the MK400 magnetic hoist. With the help of wheels and a lever mechanism, it  facilitates the lifting and moving of road covers with minimal physical effort by the operator.

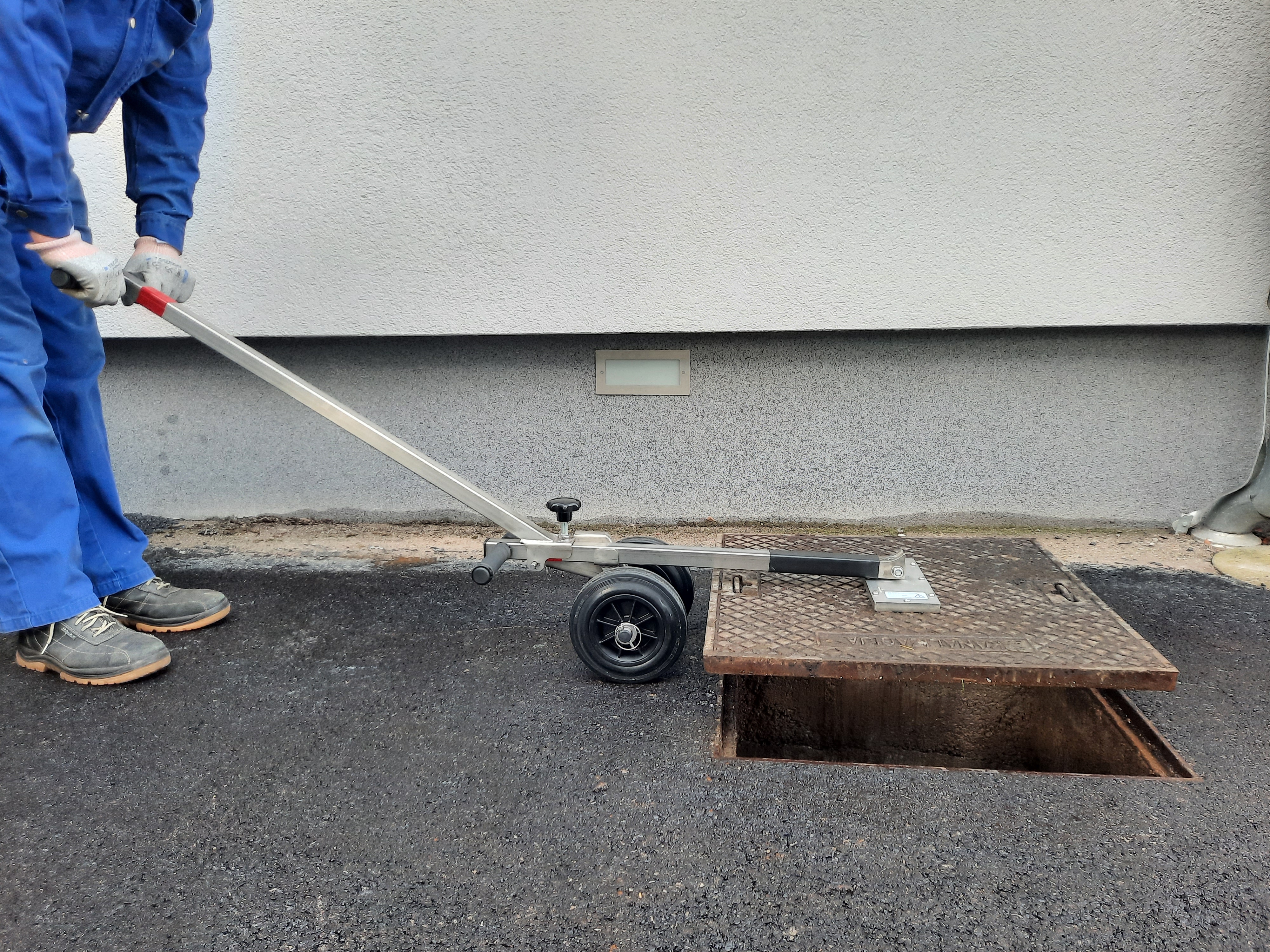

Thanks to the lever-based operation, the handle must be pressed down to lift the lid , relieving the backbone and allowing the operator to manipulate the lid safely and with minimal effort. The flexible design of the fastening system enables quick and easy installation or disassembly of the adapter and step less adjustment of the length of the lever on the magnetic key according to the size of the cover and field conditions. Large solid rubber wheels make it easier to move the lid even on partially uneven surfaces.



Due to the significant reduction of body loads when lifting road covers the WA-MK400 meets the requirements of regulations and internal acts of companies in the field of health and safety at work.

Pereja Mini V Pickup with app showing bluetooth

Properties:

• Magnet strength: 420 kg

• Magnetised area surface: 240 cm 2

• All metal parts made of stainless steel

• Permanent magnet

• Tool height: 75 cm

• Tool weight: 4,7 kg

• Rubber handles, safety reflective element

• Wooden protection cap for magnet

• Knuckle joint with self-standing mode
