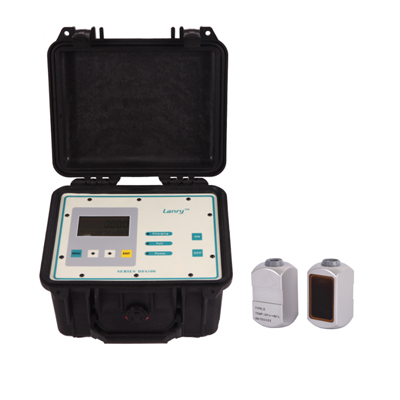

Portable Doppler Ultrasonic Flowmeter

Portable Doppler Ultrasonic Flowmeter

Designed to measure volumetric flow of solids-bearing or aerated liquid within closed conduits.

Doppler Ultrasonic Flowmeter is designed to measure volumetric flow of within closed conduit, the pipe line must be full of liquids, and there must be a certain amount of air bubbles or suspended solids in liquid.

Transducers are clamp-on or hot-tapped insertion types, the user does not need to shut down the pipe flow when installing transducers.

The Doppler ultrasonic flow meter can display flow rate and flow totalizer, etc., and is configured with 4-20mA, Relays for Totalizer and Alarm outputs

Features:

Rechargeable battery can work up to 50 hours
It is suitable for pipe sizes ranging from 40 to 4000mm
For dirty liquids, a certain amount of air bubbles or suspended solids shall be contained
Excellent low flow rate measurement ability, low to 0.05m/s
A wide range of flow measurement, high flow rate can reach 12m/s
High-temperature transducer is suitable to liquids of -35℃ ~ 200℃
Do not need to shut down the pipe flow when installing the transducers
User-friendly configuration
4-20mA, Relay Totalizer and Relay Alarm outputs
Accuracy: 2.0% Calibrated span

See the full Brochure / Datasheet for full specifications.

Portable Doppler Ultrasonic Flowmeter

Clamp-On.
